Introduction
Corrosive chemicals, seawater and high pressure systems are all environments that require piping materials that you can trust to perform. In such environments, the life span and replacement frequency of a system depend directly on the material selection. In this article, we will compare Monel 400 Pipes to the traditional nickel alloy pipes. Both are capable materials, but for different reasons. The purpose is to help you figure out which one is correct for your application.

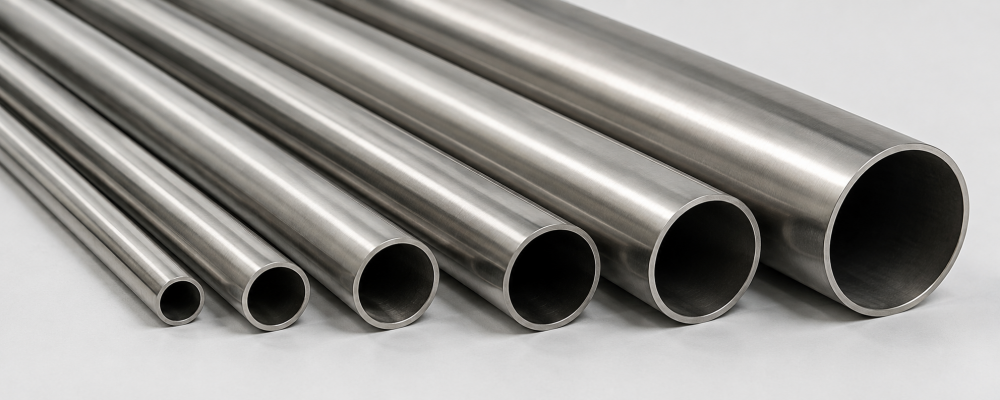

What Are Monel 400 Pipes?
Monel 400 is a nickel-copper alloy of about 67% nickel and 30% copper, with minor amounts of iron and manganese. The copper enhances performance in reducing environments and the high nickel content provides good corrosion resistance. Monel 400 Pipes are corrosion resistant to seawater, dilute hydrochloric and hydrofluoric acids, alkalis and salt solutions. They are also tough at low temperatures. Typical applications are marine engineering, chemical processing, oil and gas equipment and heat exchangers.
Overview of Conventional Nickel Alloy Pipes
Conventional nickel alloy covers a broader spectrum of materials including Inconel, Hastelloy and pure nickel grades such as Nickel 200. They are Nickel-Chromium or Nickel-Chromium-Molybdenum Alloys. They were developed largely for high temperature and oxidation resistant service. Inconel grades hold their strength above 800°C. Hastelloy variants handle both oxidizing and reducing chemical environments. These materials are standard in aerospace, power generation, and petrochemical refinery systems.
Key Differences
Monel 400 pipes and conventional nickel alloy pipes differ in the following ways.
Chemical Composition
The Monel 400 is a nickel-copper alloy. Most conventional nickel alloys contain molybdenum and chromium. Chromium imparts oxidation resistance at high temperatures. Molybdenum increases resistance to pitting. Monel 400 is not chromium containing and is limited in oxidising conditions but is suitable for reducing environments.
Corrosion Resistance
Monel 400 Pipes are best in sea water and reducing synthetic environments. They are not suitable for strong oxidising acids, such as nitric acid. More exotic nickel alloys like Hastelloy C-276 are suitable for a wider range of chemicals including oxidising environments where Monel 400 would corrode.
Temperature Performance
Monel 400 performs well up to about 480 °C. Beyond that its mechanical properties decay. Inconel and other such alloys can operate at temperatures of 1000 °C or more with little loss of strength. This makes them the only practical option for high heat applications.
Mechanical Strength
The tensile strength of Monel 400 is about 550-620 MPa. This is more than adequate for most piping applications in marine and chemical environments. High-performance grades, such as Inconel 718, exceed 1200 MPa and are used in applications with higher structural loads.
Weldability and Fabrication
Monel 400 Pipes are easy to weld and fabricate without complex heat treatment. High-alloy nickel grades, especially precipitation-hardened types, require controlled welding procedures and post-weld heat treatment, adding to lead time and cost.
Cost Comparison
The cost of Monel 400 Pipes is less than nickel alloys like Hastelloy or Inconel 625 but more than Stainless Steel. Not the purchase price, but the lifecycle cost. When used correctly, Monel 400 has a long service life that offsets its initial cost. If a poor quality material is used when Monel 400 is actually required, premature failure and increased replacement costs result.
When to Choose Each Material
Consider these things when choosing between Monel 400 pipes and conventional nickel alloy pipes.
Choose Monel 400 Pipes when:
Monel 400 pipes should be selected for systems exposed to seawater, marine atmospheres or mildly corrosive chemicals at moderate temperatures below 480°C. They are also a good choice for the processing of hydrocarbons under non-oxidizing conditions and to handle dilute acids, offering reliable corrosion resistance and a long service life.
Choose Conventional Nickel Alloy Pipes when:
Use conventional nickel alloys such as Inconel or Hastelloy for strongly oxidising environments or at temperatures outside the safe working range for Monel 400. These advanced alloys are the material of choice in demanding applications such as aerospace, power generation and high temperature refinery operations where corrosion and heat resistance are of paramount importance.
Advantages and Limitations
The advantages and limitations of Monel 400 and conventional nickel alloys are explained below.
- Monel 400 — Advantages: Excellent seawater and reducing-environment corrosion resistance. Good mechanical strength for standard piping applications. Long service life when correctly specified.
- Monel 400 — Limitations: Not suitable above 480°C. Performs poorly in oxidizing acid environments. More expensive than stainless steel alternatives.
- Conventional Nickel Alloys — Advantages: Outstanding high-temperature stability. Broad chemical resistance, including oxidizing conditions.
- Conventional Nickel Alloys — Limitations: Higher material and fabrication cost. More complex welding and heat treatment requirements.
Factors to Consider
First you need to define the environment in which the pipe will operate clearly in terms of temperature range, system pressure and all chemicals the pipe will be exposed to. Evaluate materials based on total lifecycle cost (including maintenance and replacement), not purchase price. Choose material that complies with the applicable industry and regulatory requirements for your industry. For high-risk or safety-critical applications consult a qualified corrosion/materials engineer before finalising the material and system specification.
Common Mistakes to Avoid
The biggest mistake in pipe material selection is failing to fully define the operating environment, including temperature, pressure, and the exact chemicals involved. Many decisions are made mainly on low purchase price, while overlooking the actual corrosion mechanism and the material’s realistic temperature limits. Skipping input from a qualified corrosion or materials engineer makes these problems worse. Together, these errors often cause the material to fail earlier than expected, leading to leaks, unplanned downtime, emergency repairs, and much higher overall costs than if the correct material had been chosen initially.
Maintenance and Longevity
Periodic inspection and corrosion monitoring in service are recommended for both Monel 400 and conventional nickel alloy piping to maximise service life. Find early wall loss before it develops into leaks with ultrasonic thickness checks. Keep pipe interiors clean to prevent localised corrosion under deposits and stagnant pockets. Keep the interior of the pipes clean to prevent localised corrosion under deposits and stagnant pockets. Keep iron free of contamination during installation and welding. Use matching filler metals and where practical, electrically isolate dissimilar metals. Applying these simple good practices can greatly improve the reliability of your piping, reduce the occurrence of unscheduled failures and obtain full value from the higher performance alloy materials over the life of the system.
Conclusion
Monel 400 Pipes are suitable for marine, seawater and reducing chemical environments at moderate temperatures. Conventional nickel alloys are required for high temperature service, oxidising chemical conditions and demanding structural applications. Choose the right material for the actual conditions of use, think about the total lifecycle cost and ask an engineer for advice on critical projects. That’s how you get a reliable piping system, that doesn’t require early replacement.
