Introduction
Buttweld fittings are welded directly into a pipeline, so the quality of that weld determines how the joint will perform over time. A weak weld zone is a real liability in systems dealing with corrosive media or those operating under pressure. This means weldability is a key consideration when choosing fittings, not just corrosion resistance or mechanical strength.
SMO 254 is a super austenitic stainless steel with high content of molybdenum, chromium, nickel and nitrogen. It is intended for use where standard grades are not adequate. The alloy also behaves relatively well during welding, which is not always the case with high-alloy materials. Beyond the service performance, SMO 254 buttweld fittings are used in offshore, chemical, and water treatment applications where both factors are important.
What Makes SMO 254 Suitable for Welding?
SMO 254 is composed of about 20% chromium, 18% nickel, 6% molybdenum and 0.2% nitrogen. All of these affect the material response to heat during welding.
Nitrogen is an austenite stabiliser. It helps maintain the balance of microstructure during thermal cycles of welding and reduces the probability of formation of intermetallic phases in the heat-affected zone. Carbon content is purposely lowered to below 0.02%. Low carbon limits the precipitation of chromium carbide at grain boundaries, the main cause of sensitisation in stainless steels. Such controlled chemistry is beneficial to SMO 254 pipe fittings in fabrication and during long term service.
Weldability Advantages of SMO 254 Buttweld Fittings
The low carbon content directly reduces the risk of sensitisation. In normal stainless grades, carbon reacts with chromium at the grain boundaries during welding and removes the corrosion protection in that zone. SMO 254 avoids this in most cases and so the material retains its resistance in and around the weld.
Weld decay is a known failure mode in aggressive environments, where the weld zone is more susceptible to corrosion than the base metal. The compositional balance of the alloy is maintained after thermal exposure and the heat-affected zone is degraded to a lesser extent than in conventional grades. Post weld annealing is not always necessary but is still recommended in critical service conditions to fully restore properties.
Fabrication Benefits in Industrial Applications
● SMO 254 can be cold worked by conventional methods to form and shape. It is more rigid than 316L but does not need special equipment for most piping components.
● Welding process compatibility: Suitable for TIG, MIG and plasma arc weldings. Filler metals, such as AWS ER385, are used to match or exceed the properties of the base metals.
● Less cracking as well as distortion – Nitrogen increases strength and helps reduce warping during welding. Proper technique and inter-pass temperature control can control the work hardening.

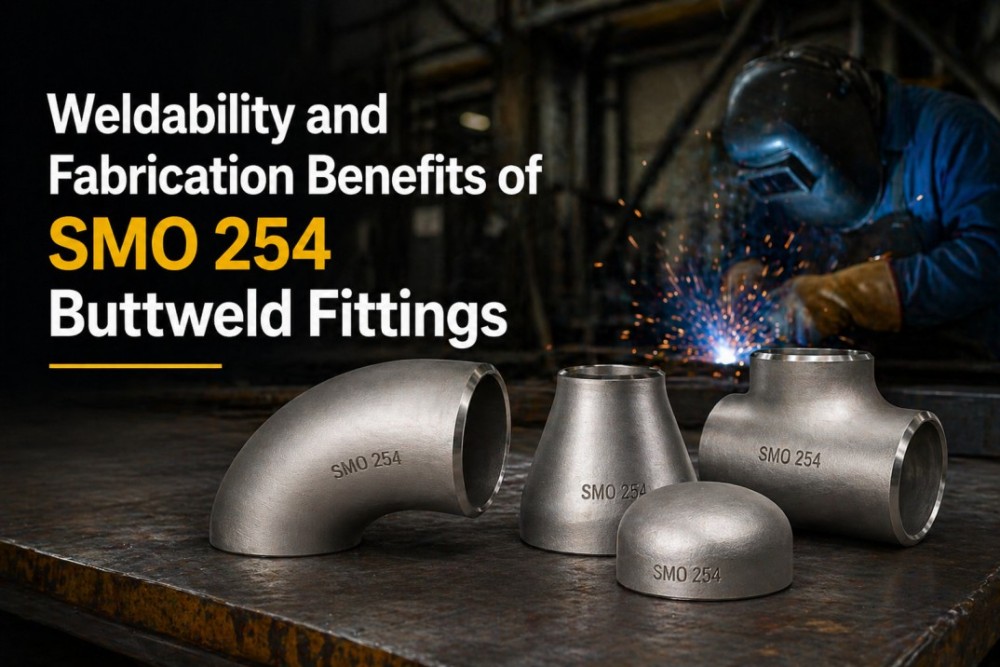

● Complex geometries: Elbows, tees, reducers and caps can be manufactured to tight dimensional tolerances, which is crucial in systems with complex piping layouts.
Performance in Corrosive Environments After Welding
The question with any welded fitting is whether the joint behaves in service as the base metal. Good here is SMO 254. It generally has a Pitting Resistance Equivalent Number (PREN) of over 42, versus about 24 for 316L. With good technique this resistance is largely retained after welding.
Also, the high molybdenum content provides good control of crevice corrosion, which often initiates at weld toes or under gasket surfaces. The weldability of SMO 254 manifests itself in a lower susceptibility to the general failure mechanism of the weld in chloride environments, also in the joint area, with a uniform performance.
Significance in Vital Sectors
● Offshore and marine systems: Seawater piping requires fittings that are resistant to chloride damage at weld joints and in the base metal. SMO 254 does both.
● Chemical processing plants: Elevated temperatures with strong acids and halide-bearing media require post-weld stability not available with standard grades.
● Desalination and water treatment: The high chloride content and thermal cycling put significant stress on welded connections over time.
- Oil and gas pipelines: Sour service and wet gas conditions add hydrogen sulphide to the chlorides and the alloy’s mechanical strength contributes to the joint integrity in extended service life.
Comparison with Standard Stainless Steel Fittings
The table below compares SMO 254 with standard stainless steel fittings like 316L and 304.
| Property | SMO 254 | SS 316L | SS 304 |
| Molybdenum (%) | ~6 | ~2-3 | None |
| PREN | >42 | ~24 | ~18 |
| Pitting resistance | Excellent | Moderate | Low |
| Crevice corrosion resistance | Excellent | Moderate | Poor |
| Chloride SCC resistance | High | Moderate | Low |
| Weld sensitisation risk | Very low | Low to moderate | Moderate |
| Mechanical strength | Higher | Standard | Standard |
SMO 254 is not a general replacement for 316L or 304. The cost is higher. But in environments where those grades fail prematurely, the performance difference justifies the material selection.
Quality Considerations in Manufacturing SMO 254 Fittings
Baseline requirements are consistent wall thickness, accurate weld end preparation and dimensional conformance to standards such as ASME B16.9. Any variation in weld prep will cause fit-up problems in the field and affect the quality of the joint.
The welding procedures used in production must be qualified and strictly followed. The integrity of the fitting is verified by non-destructive testing, such as radiographic inspection and dye penetrant inspection. Corrosion testing in accordance with ASTM G48 shows the alloy’s resistance is not compromised during fabrication. Also important is dimensional consistency from batch to batch, especially when fabricators are working to a qualified welding procedure.
The supplier’s role in securing weldability performance
Role of Supplier in Ensuring Weldability Performance
The alloy composition must be consistent from batch to batch. Changes in molybdenum, nitrogen or carbon affect the weldability behaviour and service performance of the material. A reputable supplier will provide full traceability from the mill certificate to the finished component with documentation to support compliance to ASTM A403, ASME, NACE or EN standards as applicable.
SMO 254 fittings come with complete material documentation and are compliant with all relevant international standards. This is ideal for clients in industries where traceability is a requirement for the project, not an optional extra.
Conclusion
SMO 254 offers real benefits during welding, not only in service. Low carbon limits sensitisation, nitrogen helps microstructural stability and the weld zone, where most failures in aggressive environments actually start, maintains corrosion resistance of the alloy. These weldability characteristics are practical considerations in the selection of materials as piping systems for chloride-heavy or aggressive chemical environments. SMO 254 Buttweld Fittings Product Page In the SMO 254 Buttweld Fittings product page, you will find detailed specifications, dimensional standards and sizes available.
