Insight on the selection of welding rods: When welding stainless steel, it is very important to do a proper selection of the welding rods. Not only does choosing the appropriate rod facilitate the delivery of a solid and good quality weld, but other aspects of your project as well. In this Blog, I am going to explore some of the popular sizes of SS welding rods and their appropriate uses to assist you to make better choices on the tasks that require welding.

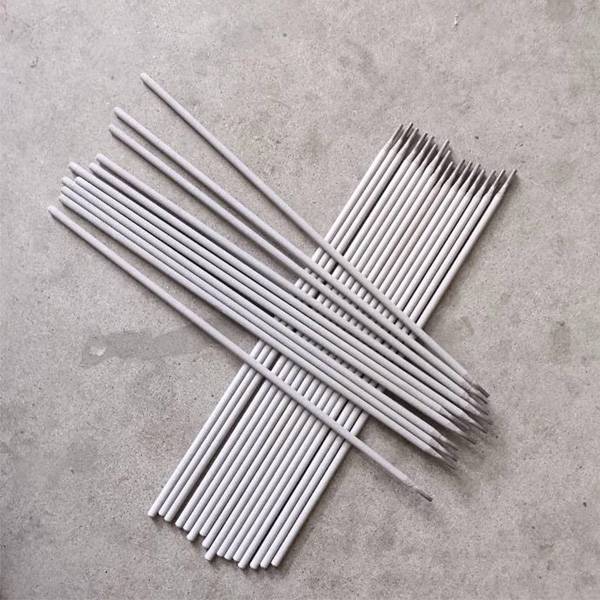

Understanding Stainless Steel Welding Rods
Welding rods which are utilized during the welding process are called the stainless steel (SS) welding rods. They are intended to join two or more stainless steel parts together resulting in a strong bonded structure that can take stress or even corrosion and other forces in the environment. Choice of the rod basically depends on the diameter, and it will determine the quality and effectiveness of the welds produced.
Welding rods are came in different sizes in inches or millimetres, and they varies in size depending on its usage. Now let’s take a look at the most popular dimensions and their application area within the industry .
Welding rods are mainly classified according to their sizes. Since SS welding rods are mostly used in joining stainless steel Boilers, pressure vessels, and other stainless steel-based structures, below are highlighted common …
1. For SS welding rods, 1/16 Inch (1. 6 mm) is mostly used.
- Application: This is one of the smallest sizes and is standard for welding thin stainless steel sheets that are common in auto-mobile and aircraft industries. Due to its small diameter one can easily manipulate it especially when performing a complex task that requires high accuracy.
- Advantages: Low heat input and subsequent minimal heat distortion, high level of control, and a clean and neat weld profile are some of the advantages that one will get when using a 1/16-inch SS welding rod.
2. 3/32 Inch (2.4 mm) SS Welding Rods
- Application: The 3/32-inch rod is rather universal, therefore, it is used for most of the welding of the stainless steel. It is usually applied in average welding, which involves building of stainless steel frames, brackets or other frameworks.
- Advantages: It is considered to be a good size for maintaining penetration while at the same time being able to have adequate control. It is most effective where the thickness of the material is thin and moderately thick and the weld is going to be very strong and very hard.
3. 1/8 Inch (3.2 mm) SS Welding Rods
- Application: Another size of the welding rod is the 1/8-inch welding rod which is also quite popular in constructions and industries. It is especially suitable for joining thicker stainless steel materials such as pipes ,plate and heavy equipment component.
- Advantages:This size is capable of handling greater ampare and also deeper penetration to guarantee well-developed welds which can conveniently withstand good stress and pressure.
4. 5/32 Inch (4.0 mm) SS Welding Rods
- Application: The 5/32 inch rod is mostly recommended for use where thick stainless steel sections are to be joined and some of the areas where the product is widely used include in the construction of ships, power generating plants, and oil production companies.
- Advantages: This size rod offers deep penetration while offering great fusion in critical applications where strength and ductility are vital.
5. 3/16 Inch (4.8 mm) SS Welding Rods
- Application: This size is normally used to process the very thick and massive stainless steel that is used in construction of industries, machines and structures as well as other structures that require welding.
- Advantages:The 3/16-inch rod can carry very heavy loads of amperes and it will provide maximum and efficient penetration and strength, in addition to providing the stability of large and fully loaded structures.
Welding has become an important engineering process since it involves joining two metals together using heat while other materials may be used separately. Stainless Steel welding rods are used in joining the Stainless steel metals through the arc welding process. Welding rods can be of different sizes hence, choosing the right size is very important. To choose the right SS welding rod size, the following factors should be considered;
Selecting the appropriate welding rod size depends on several factors:
Material Thickness: Thermal conductive materials with bigger thickness call for bigger rods so that a deeper penetration can be made.
Welding Position: For overhead or vertical welds, to have the ability to exercise some measure of control, use of comparatively shorter rods is ideal.
Current Type: The rod size also affects the amperage setting, which has to be set accordingly
.
In cutting larger sheets, or thicker and heavier sections of stainless steel, the larger rods of, for instance, 1/16 or 3/32 inch sizes are preferable. This type of electrode can be used as universal electrode with thickness of 1/8 inch of the welding rod. Nevertheless, the greater thickness of the 5/32 or 3/16 inch rods are preferable for fat and heavy stock.
If you want the best quality SS welding rods at the best price possible, then you can visit shanti metal supply corporation. You can get quality welding rods at the best price possible.
Conclusion
It is therefore very important that the correct size of SS welding rod is selected to obtain good and strong welds. In case you have to work on thin delicate stainless steel sheets, or massive industrial constructions, it will not always make sense to go for the wrong sizes for a given application.
Therefore, selecting the right size of the rod is important because it facilitate a good weld and the rate of achievement of welding endeavors. It is always appropriate to match the rod size with the material thickness, and the application intended for use most of the times.
