In industrial fastening, therefore, choosing of appropriate material for making bolts is one of the most important factors that determine longevity, safety, and performance as far as structures or machines being put together are concerned. Among all the available materials there are two of the most famous: Monel 400 and Stainless Steel. Each of them possesses qualities that qualify it for several uses. So let’s look into detail Monel 400 bolts and Stainless Steel bolts so that you could make the right choice for your project.

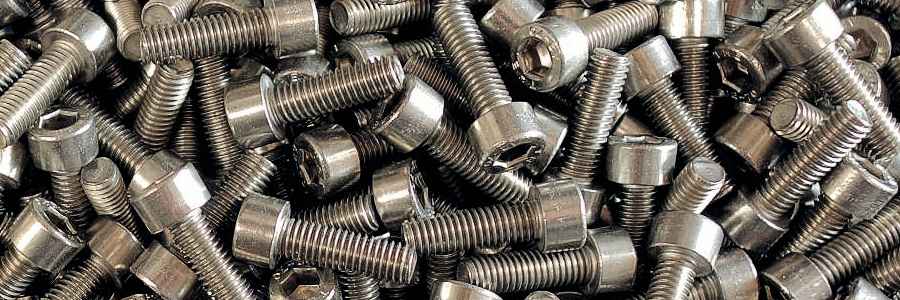

About Monel 400 Bolts
Monel 400 is an austenitic, nickel- copper alloy with high resistance to corrosion especially in marine and chemical surroundings. Monel 400 is generally used in an alloy form containing about 67% nickel and 23% copper with the overall superior high strength and ability to withstand a number of corrosive agents. That is why Monel 400 bolts are widely used within industries that require handling of chemicals and/or exposure to salt water.
Introduction to Stainless Steel Bolts
Stainless steel, on the other hand, is an iron-based material to which chromium is added in order to give the steel a resistance to corrosion. There are various grades of stainless steel skilled in different measures of corrosion, heat as well as wear. The bolts can be supplied in different grades; however, two popular grades are grade 304 and grade 316. Both the grades are very chemically and corrosion resistant but 316 SS has got the addition of molybdenum which gives it still more resistance towards chloride and saline solutions.
Corrosion Resistance: Monel 400 vs. Stainless Steel
On the parameter of corrosion; Monel 400 bolts are even superior to SS bolts particularly in marine and chemical environments. Monel 400 provides corrosion resistance in freshwater and saltwater as well as non oxidizing, organic and inorganic acid such as hydrochloric and sulfuric acid. conversely, Stainless Steel bolt are resistant to corrosion in numerous environments where carbon Steel bolts would not be appropriate. However, it is susceptible to pitting and crevice corrosion especial if its chloride concentration is high such as in sea water.
Stainless steel 316 is slightly better in resistance to these conditions than stainless steel 304 but as is evident it does not perform as well as Monel 400 when it comes to such harsh conditions. Depending on the environment into which the application is going to be exposed: if the exposure is to highly acidic solutions or to saline water, then Monel 400 is going to be more appropriate a material.
Strength & Durability
Monel 400 and Stainless Steel, both are strong and durable, but certain variations can be identified. Monel 400 is rather tensile and can be used in high pressure and temperature conditions with out diminishing in its properties. It also has high strength at both extremely low sub zero temperature as well as near 1000oF (537oC) temperature.
Stainless Steel, especially the 316 grade of Stainless Steel is noted for its high tensile strength and inherent strengths vis-a-vis toughness and durability. However, if the temperature is very high, for instance, in case of stainless Steel some of the strength may be compromised. In some applications where both strength and heat resistance are critical, Monel has been found to be superior to Monel 400.
Cost Considerations
Cost is one of the most important elements of decision when trying to determine between Monel 400 bolts and Stainless Steel bolts. Monel 400 is costlier than Stainless Steel principally because of the high nickel content and the difficulties and special techniques in production. Although such advantages stem from the extra expense, one needs to understand if your application is well suited at such environments to warrant the additional cost.
Compared to other types of screws, stainless steel bolts are cheap and do a marvelous job in various activities, so are good to price-wise for many industries. In case of high budgets considered and with non-corrosive environment condition, stainless Steel should be preferred.
Applications
The applications for Monel 400 and Stainless Steel bolts vary based on their properties. Monel 400 bolts are commonly used in the following ways:
- Marine engineering
- Chemical processing plants
- Oil and gas production
- Heat exchangers
On the other hand, Stainless Steel bolts are widely used in:
- Construction
- Automotive industry
- Food processing
- Medical devices
If you want the best quality Monel 400 bolts at the best price possible, then you can visit this website. You can get quality bolts at the best price possible.
Conclusion
In conclusion, the choice between Monel 400 bolts and Stainless Steel bolts depends largely on the specific requirements of your application. If your project demands exceptional corrosion resistance and strength in harsh environments, Monel 400 bolts may be the best option despite their higher cost. However, for general-purpose applications where corrosion resistance is important but not extreme, Stainless Steel bolts offer a reliable and cost-effective solution.
Always consider the specific conditions your bolts will face and weigh the benefits of each material before making a decision. The right choice can enhance the longevity and safety of your structures and machinery, providing peace of mind and long-term savings.
