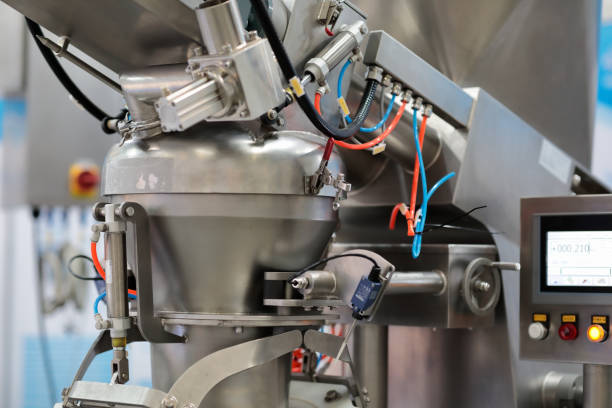

Photoelectric sensors are modern devices with industrial uses ensuring precise detection of objects without making any physical contact. These non-contact sensors are very efficient and useful in manufacturing, packaging, and material handling. However, for integration purposes, the wiring configurations for these sensors have to be understood. A photoelectric sensor wiring diagram is helpful in this regard as it helps technicians and engineers avoid wiring errors such as system inefficiencies and failures. This guide is aimed at helping readers understand the wiring fundamentals, different types of wiring configurations, and how automation companies use photoelectric sensors to improve their systems.
Basics of Photoelectric Sensor Wiring
To fully understand how a photoelectric sensor is wired, one has to first understand the components in it. A photoelectric sensor is made up of three main components: an emitter which sends out a beam of light, a receiver which detects the rays and checks for the presence of an object, and an output signal which is the final part to be triggered. These sensors usually come with two-wire, three-wire, and four-wire configurations.
The aforementioned photoelectric sensor diagram serves as an example for how these connections are made, showing how the sensor connects to power sources, relays, control units and other devices in an automation system. In industrial automation, as an example for sensors, different voltage levels DC 10-30V or AC110-220V are used. Connecting wires of the equipment incorrectly can lead to malfunctioning equipment, and in the worst case scenario, damage the equipment such as the sensor. Hence, such wiring diagrams should be properly followed while sensors are being integrated into an automation system. Many distribution companies of industrial automation have such wiring guides and render them as part of the technical assistance to the users so that the sensors are connected adequately. Proper connection makes it possible to meet the requirements of safety directives avoiding unwanted short circuits, false triggers, and other events caused by incorrect object detection which would stop different processes from executing properly.
NPN, PNP, and Relay types
The majority of photoelectric sensors have three main types of wiring arrangements: NPN (sinking), PNP (sourcing), and relay output types. Establishing a basic understanding of these arrangements is vital in determining the appropriateness of controllers and PLCs.
The term ‘NPN wiring’ or ‘sinking output’ typically refers to a configuration in which a sensor detects an object and the sensor’s output signal is passed to ground (0V). This arrangement is commonplace in industrial automation systems that use programmable logic controllers (PLCs) with sinking inputs. In contrast, PNP wiring or sourcing output, sends a positive voltage (+V) to the controller upon detecting an object. PNP configurations are commonly used in European automation systems and are compatible with PLCs provided with sourcing inputs.
Relay output configuration is another widely accepted wiring type as it provides the sensor with the ability to switch on high power loads through an internal relay. Such sensors can be connected to AC or DC circuits which are typically used in systems that require flexible switching. Relay output sensors should only be used where the switching capacity is clearly defined to avoid damage to electrical components. Relay output sensors are recommended by many industrial automation companies for high current devices such as motors and solenoids. In addition, the correct wiring type should be selected in order to take care of wiring misalignment that can cause failure of signal transmission or dysfunction of the system.
How to Read a Photoelectric Sensor Wiring Diagram
Understanding a photoelectric sensor wiring diagram is important for the correct use of sensors in an automation scheme. A typical wiring diagram incorporates power connections, output wiring, and ground connections. Other indications may also be included, such as the color of the wires and their functions; however, the codes are not standard and vary with different manufacturers.
For example, in DC powered sensors, the brown wire typically represents the positive supply voltage (+V), the blue wire represents ground (0V), and the black or white wire represents the output signal. Options like normally open (NO) or normally closed (NC) are reserved for additional wires within a sensor. These markings reduce the chance of incorrect wiring that is bound to have an adverse impact on the sensor’s function, greatly aiding technicians.
An effective wiring diagram illustrates whether the sensor has a normally open(NO) or normally closed(NC) output too. In NO setting, the sensor output is off until an object is detected, at which point it is turned on. On the other hand, the sensor in the NC setting stays on until an object is sensed when it turns off. The choice of selecting between NO or NC configurations is dependent on the application requirements, and a large number of industrial automations companies provide the necessary wiring configuration selection advice. Furthermore, well prepared schematics will oftentimes also feature wiring symbols that can assist users in diagnosing problems related to wiring during the process of installation or maintenance works.
Recommended Methods for Installing Photoelectric Sensor Wiring
Correct practices of wiring photoelectric sensors on automation systems are guaranteed with proper wiring. One of the recommended practices is to avoid high voltage power lines near the sensor wires because Electromagnetic Interference from motors or big machines can cause unwanted activations or random movements. The use of shielded cables and appropriate grounding further reduces interference and improves the reliability of the sensor.
Another important activity is determining if the sensor voltage matches that of the control system. A few sensors need direct current (10-30V) while several others work with electric current (110-220V). Improperly connected voltages can lead to sensor damage or undesirable operational effects. Following the manufacturer’s photoelectric sensor wiring diagram assures proper voltage wiring and avoids expensive errors.
Moreover, using proper connectors and terminals enhances connection stability and eliminates the chance of loose connections which is a frequent cause of sensor failure. Most industrial automation companies advise the use of industrial connectors because they ensure secure but easy to remove connections even in harsh conditions. Periodic maintenance and making sure that the sensors are free from dust, blockage, and misaligned greatly increase the effectiveness and lifespan of the sensors. Labeling sensor cables and adopting a systematic wiring arrangement helps reduce troubleshooting time, and makes future changes effortless.
Conclusion
In summary, the automation industry greatly benefits from PNP and other suitable photoelectric sensors for NPN automation because object recognition is achieved with non-contacting precision. And as such, it is important to know how to wire them correctly for easy integration into automation systems. A photoelectric sensor’s wiring connection must combine the correct set of NPN, PNP, and relay output for maximum efficiency and system compatibility. Then, the sensor’s correct operation is guaranteed if best practices in wiring are observed and other supporting technical documentation is available. In addition, sensors, wiring diagrams, and other automation elements systems supplied by professional companies increase any business automation efficiency and performance reliability. Proper wiring increases sensor performance while safeguarding against downtimes and enhancing operational safety risks. With this in mind, sensor efficiency is vital in any industrial automation situation, which makes wiring a key issue at all stages of the industrial automation life cycle.
